Parking Lot Traffic Sign Installation: U-Channel vs. Bollard for Long-Term Durability

Why Parking Lot Traffic Signs Matter

Whether you manage a shopping center in Florida, an office park in Virginia, or a self-storage facility in New Jersey, parking lot traffic signs are essential for safety and compliance:

• Handicap/ADA signs – required by federal law

• Reserved parking signs – for tenants, VIPs, or employees

• Time-limited parking signs – e.g., “15 Minute Parking” near storefronts

• Directional and safety signs – stop, yield, one-way

Installing them properly impacts not only regulatory compliance, but also the total cost of ownership for your facility over time. When sign installations are executed without regard to established codes, proper material selection, or fundamental construction principles, the risk of premature failure increases dramatically. Improperly set posts may lean, loosen, or break, resulting in unplanned repairs, repeated replacement costs, and greater exposure to trip-and-fall hazards for employees and visitors. This leads to an elevated liability profile and the possibility of fines if regulatory inspections uncover deficiencies or code violations.

Beyond initial installation, signs that lack sufficient base depth or are anchored in substandard materials often deteriorate more rapidly under routine site conditions—such as freeze-thaw cycles, impacts from snowplows, or repeated vehicle contact. This reduces the expected service life of the sign system and drives up long-term maintenance expenditures.

Conversely, when parking lot signage is anchored with proper foundation depth, engineered materials, and in accordance with local, state, and federal safety requirements, the benefits include enhanced site safety, fewer incidents, and improved asset management. A well-installed sign system reliably withstands the rigors of commercial traffic, extreme weather, and frequent maintenance activities. Property managers experience fewer service interruptions, reduced risk of costly citations, and a measurable decrease in out-of-cycle repair costs—delivering an installation that protects not only compliance, but the facility’s long-term operational budget and professional image.

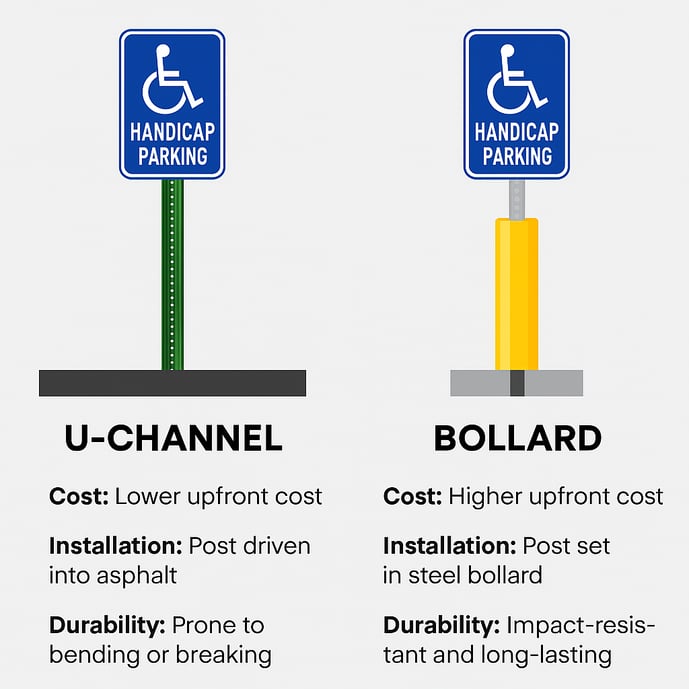

Two Common Installation Methods

1. U-Channel Post Directly in Asphalt

G

• Standard green or galvanized U-channel post driven directly into the asphalt.

• Lower upfront cost.

• Faster to install.

• Common for smaller lots or temporary installations.

Drawbacks:

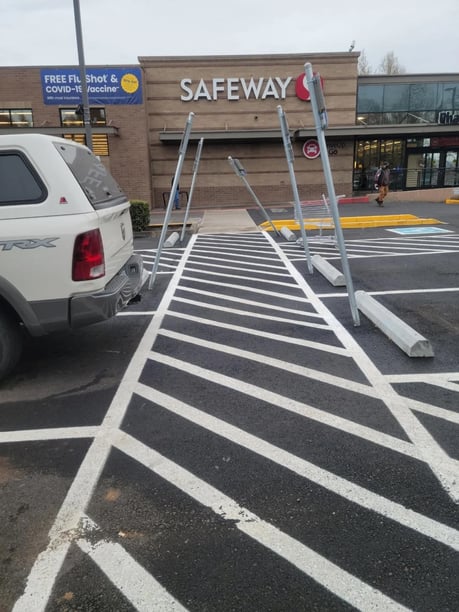

• Asphalt is weaker than concrete — posts can loosen, lean, or break.  When posts break off they then become a trip and fall liability

• Snowplows, vehicles, and weather can easily bend or damage them.

• Often require replacement every few years.

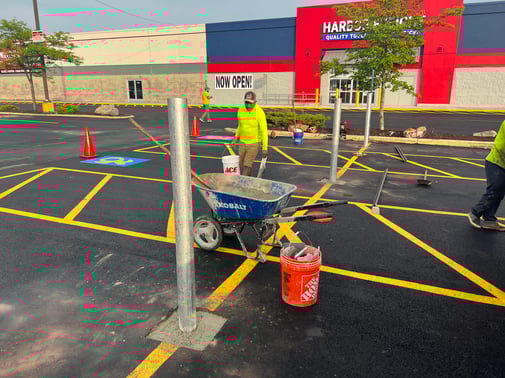

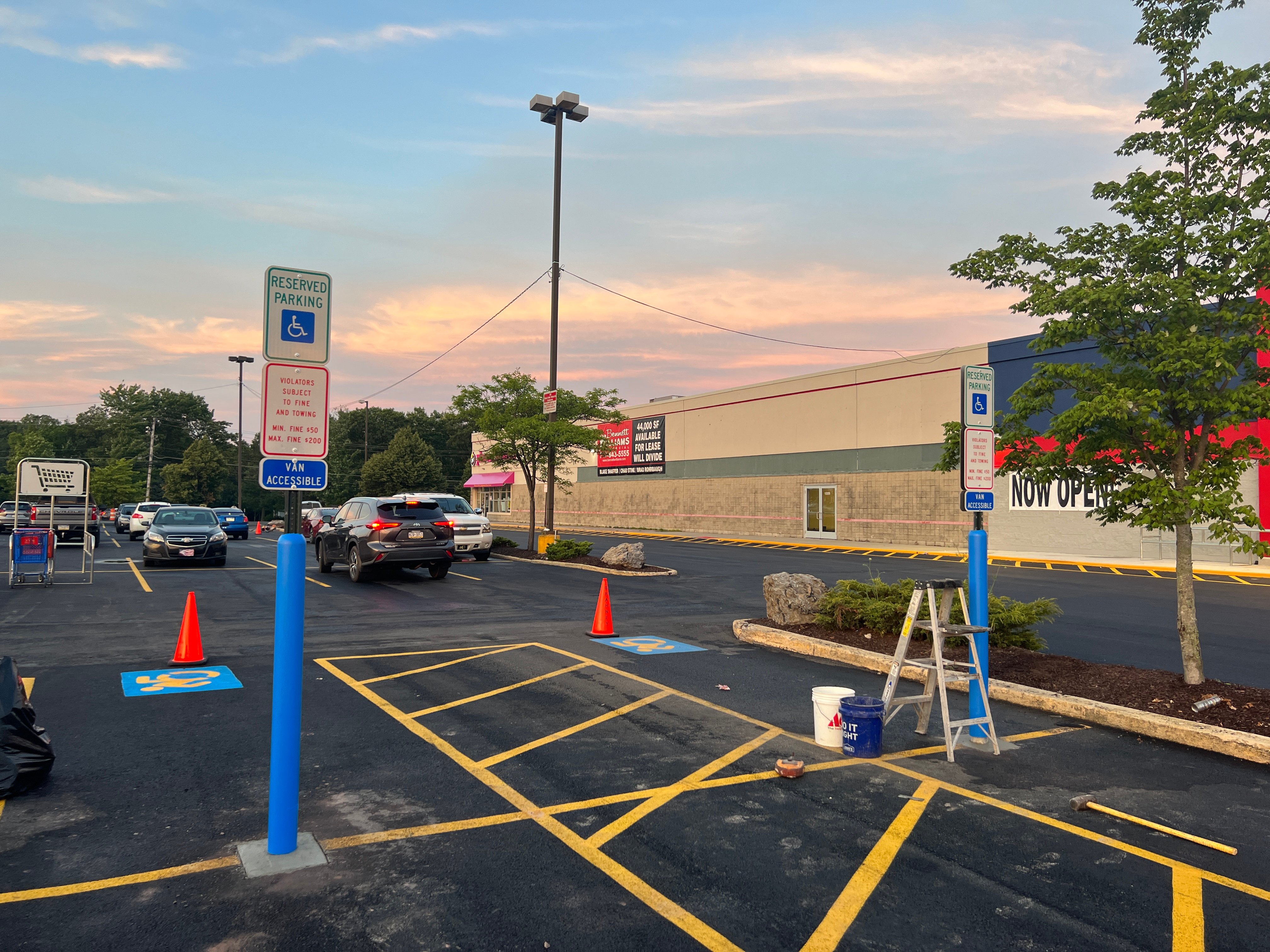

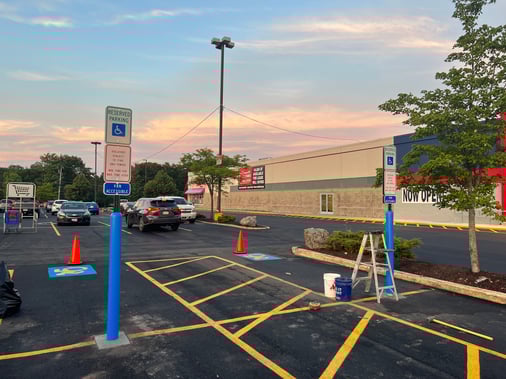

2. Steel Bollard with Sign Post Inserted

• Heavy-duty steel bollard is set in concrete (below frost line).

• The U-channel or square post is sleeved inside the bollard.

• Offers crash protection and keeps signs upright for decades.

Benefits:

• Much higher durability and impact resistance.

• Protects the sign and the asphalt around it.

• Lower long-term replacement cost.

• Does not require concrete car bumpsters to protect from car damage

Drawbacks:

• Higher upfront cost (bollard + concrete footing).

• Longer installation time.

Which Option Is Better?

• For short-term or low-traffic lots: Direct U-channel in asphalt may be sufficient.

• For high-traffic commercial properties, retail centers, hospitals, or municipal lots: Bollard-protected installations provide the best long-term value.

Property managers who choose bollard installations often find they pay less over 10–15 years because they aren’t replacing bent signs every winter.

The Role of Concrete Car Bumpers in Protecting Traffic Signs

Some property owners choose to place concrete car bumpers (wheel stops) in front of parking lot signs mounted on U-channel posts. The logic is simple: the bumper prevents vehicles from rolling into and bending the post.

Benefits

• Protection for U-Channel Posts: A properly placed bumper can stop low-speed vehicle contact, which is the most common cause of bent or broken U-channel signs in asphalt.

• Lower upfront investment: This can extend the life of a post installation without the cost of a bollard.

Drawbacks

However, car bumpers create a new set of challenges:

1. Tripping Hazards – Pedestrians may not see the bumper and could trip, especially in low lighting or when snow covers the lot.

2. Snow Removal Issues – Plows often cannot clear behind or around the bumper effectively, leaving behind piles of snow or slush.

3. Icing Risks – The leftover snow can melt and refreeze, creating ice patches that increase liability in winter months.

4. Maintenance Burden – Bumpers shift, crack, or break over time, requiring additional repairs.

Bottom Line

While concrete car bumpers may protect a U-channel sign post from vehicle damage, they can increase liability and maintenance costs. For properties seeking long-term safety and durability, bollard-protected installations remain the better investment.

Cost Comparison

• U-Channel in Asphalt: $750 – $1,200.00 per installed sign

• Bollard-Protected Sign: $1,200 – $1,500 per installed sign (depending on region, how many, what sign(s),  depth, and bollard finish, such as painting or a maintenance-free plastic cover)

While bollards can cost 2–3x more upfront, their life cycle cost is often lower because they last significantly longer and require fewer replacements.

Frequently Asked Questions

Q: What’s the best way to install ADA handicap signs to meet compliance?

A: ADA standards mandate that regulated signs—such as handicapped parking markers—are mounted at specified heights above grade (typically 60 inches minimum to the bottom of the sign for parking spaces), face the correct direction, and are installed with unobstructed visibility. Mounting signs on a bollard post set in concrete ensures they remain at the designated height and orientation over time, regardless of winter frost heave, snowplow strikes, or incidental vehicle contact. The robust construction protects against impact damage that would otherwise displace or topple conventional posts set in asphalt. As a result, the required accessibility signs remain visible, legible, and compliant year-round, minimizing exposure to ADA-related fines and enhancing safety for all visitors and tenants.

Q: Do bollards require maintenance?

A: Maintenance requirements are minimal. Periodically inspect the paint or plastic sleeves on the bollards for any signs of wear, chipping, or fading, as these are primarily aesthetic and easy to address. The structural components—heavy-gauge steel pipe set in reinforced concrete—are engineered to withstand vehicle impacts and environmental exposure, ensuring reliable performance for several decades without structural concerns. For optimal long-term appearance and to eliminate the need for repainting, install a weather-resistant plastic bollard cover. These covers are UV-stable, available in high-visibility colors, and can be replaced or cleaned as needed, rendering the installation virtually maintenance-free and preserving a professional look year-round.

Q: Are there alternatives to bollards or asphalt posts?

A: Some property owners use concrete-filled bases or square perforated tubing, but bollards remain the most durable option for long-term protection.

Conclusion: Invest for the Long Term

If you’re managing a commercial property on the East Coast, think beyond the upfront installation price. Bollard-protected sign posts are the best investment for ADA compliance, reduced liability, and long-term savings.
